RIG 24
COMBINED GRID & AC COUPLED INVERTOR, EESS & EV RIG
( Simulated Domestic Environment Practice &
Assessment Rig )
Setup & Programming
Device Integration
Initial Verification
Periodic Inspection & Testing
Reporting & Certification
Fault Finding ( 8 X Switchable Faults )
RIG DESIGN SPECIFICATIONS:
(ALL CIRCUITS HAVE BEEN DESIGNED AND INSTALLED TO GIVE 'REAL WORLD' TEST READINGS & ALL CABLE CPC'S AT OUTLETS/CONSUMER UNITS ARE 'REAL WORLD SIZE')
Single phase.

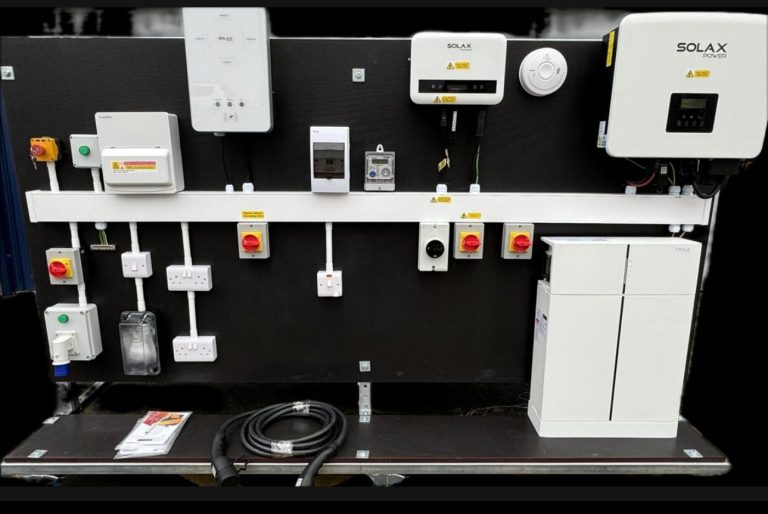

Rig comprises of a:
AC coupled invertor
EV Charging Unit
3.5KW high voltage battery with BMS
Grid tied PV invertor

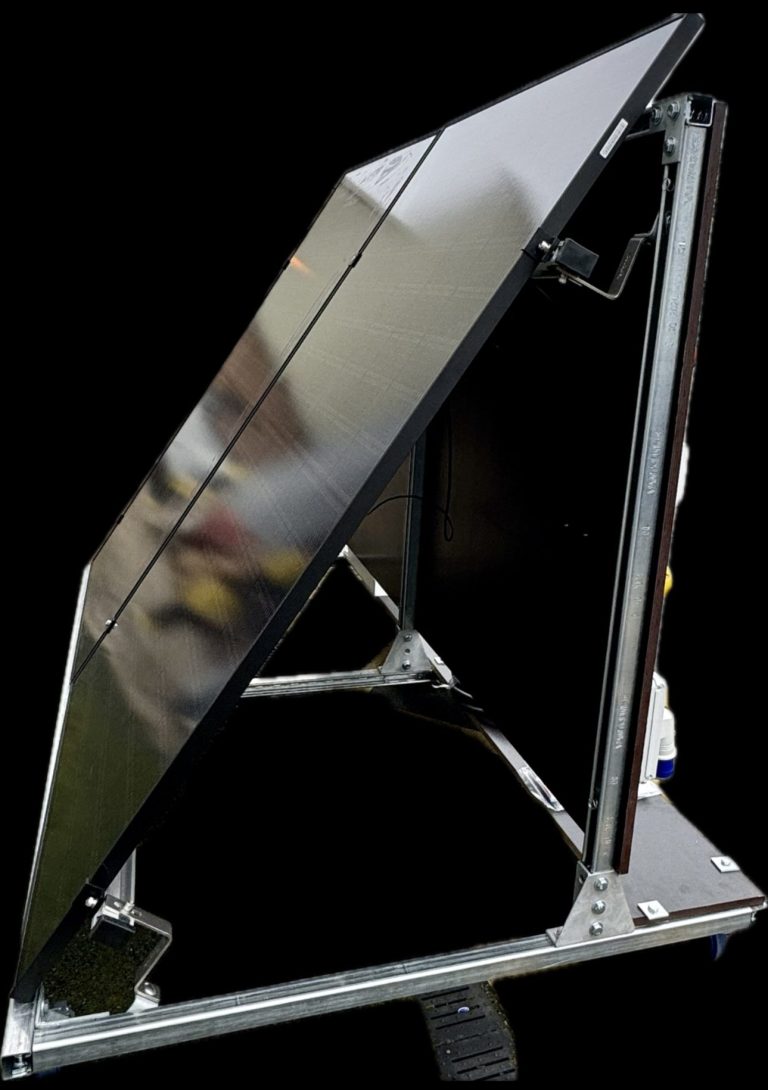

2x 400watt photvoltaic solar panels
